DIY Ball Joint for front truck on a Slalom setup
Goto page Previous  1, 2, 3, 4, 5, 6, 7, 8, 9, 10

Post new topic   Reply to topic    charliedontskate.com Forum Index -> Coneheads
View previous topic :: View next topic
Author Message
DA BEAR



Joined: 22 Nov 2007
Posts: 374
Location: FAIRFIELD,VIC

PostPosted: Tue Jun 23, 2009 5:49 pm    Post subject: Reply with quote

R2 180, Why do it?
Because it was there.
(and Fitz said its possible),
and to try and keep up with the NACCOSSions.





Notice in the last pic how the hanger's centred dead over the
king pin. All done by hand no power tools at all.
Wayne.
Back to top
View user's profile Send private message Send e-mail
fitz



Joined: 30 Mar 2006
Posts: 815
Location: Sydney

PostPosted: Tue Jun 23, 2009 6:43 pm    Post subject: Reply with quote

Bugs wrote:
Randals too:
http://www.silverfishlongboarding.com/forum/longboard-skateboarding-trucks/73999-randal-mod.html



These particular Randals are an exception of the "too thin to have hanger bearing" rule.
R2 hangers are quite thin compared to R1's.
Back to top
View user's profile Send private message Send e-mail
fitz



Joined: 30 Mar 2006
Posts: 815
Location: Sydney

PostPosted: Tue Jun 23, 2009 7:07 pm    Post subject: Reply with quote

Don't worry if it looks a bit wonky, Bear.
Just check slap the complete truck baseplate down on a flat surface and measure the height of the axles from the surface up.
If they're within 1mm they're good enough. Any more and they may have problems going in a straight line. I reckon you'll be right though. Wink
Back to top
View user's profile Send private message Send e-mail
DA BEAR



Joined: 22 Nov 2007
Posts: 374
Location: FAIRFIELD,VIC

PostPosted: Thu Jan 14, 2010 8:59 pm    Post subject: Reply with quote


Bennett baseplate with a 19od 10id spherical fitted,
more photos and reports to come.
Back to top
View user's profile Send private message Send e-mail
mosu101
forum admin


Joined: 08 Jan 2005
Posts: 3482
Location: Maroubra

PostPosted: Fri Jan 15, 2010 7:32 am    Post subject: Reply with quote

quality work Bear, Did you machine this one or is it by hand?
Back to top
View user's profile Send private message
DA BEAR



Joined: 22 Nov 2007
Posts: 374
Location: FAIRFIELD,VIC

PostPosted: Fri Jan 15, 2010 7:28 pm    Post subject: Reply with quote

Start with 2 carbi tool, TB8 bearings and a 3/16 drill bit.
The bearings go in the baseplate as the pilot for the drill.

Drill right through the baseplate, this hole, 3/16 is the pilot hole
for the router bit.

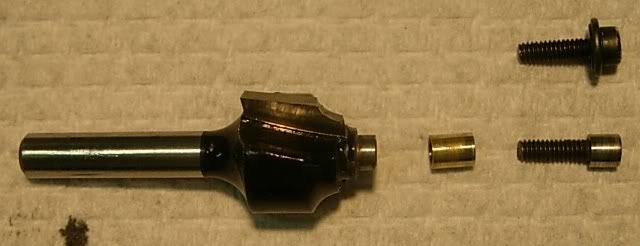

Carbi tool router bit T504B, make/get a spacer, turn down the
bearing screw and spacer to bout 4.5mm.
Use these to extend the pilot length on the router bit.
Back to top
View user's profile Send private message Send e-mail
DA BEAR



Joined: 22 Nov 2007
Posts: 374
Location: FAIRFIELD,VIC

PostPosted: Fri Jan 15, 2010 7:40 pm    Post subject: Reply with quote

Heres where you have to check depths of cut etc.
The TB8 goes on the bit as a pilot, but prob wont let you cut deep enough
For the 10/19 bushing too seat, so do 1 cut with the bearing on
Then the finish cut with it off, to get deep enough

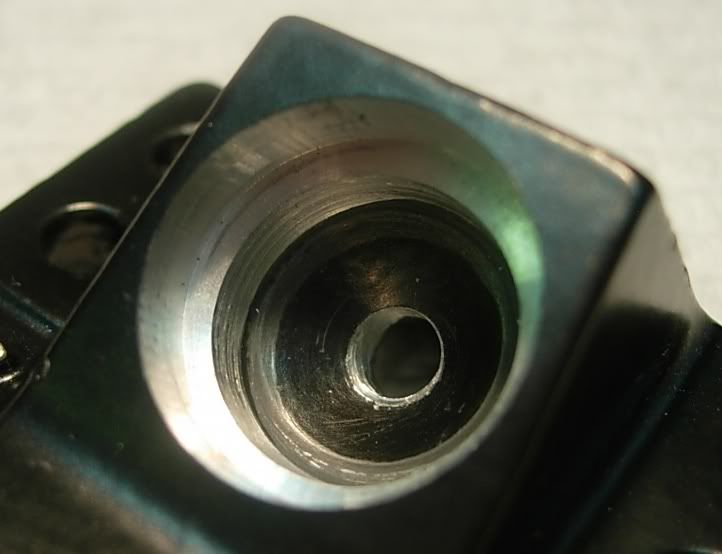

Heres the finished cut bout 5mm deep, with a pretty square seat
